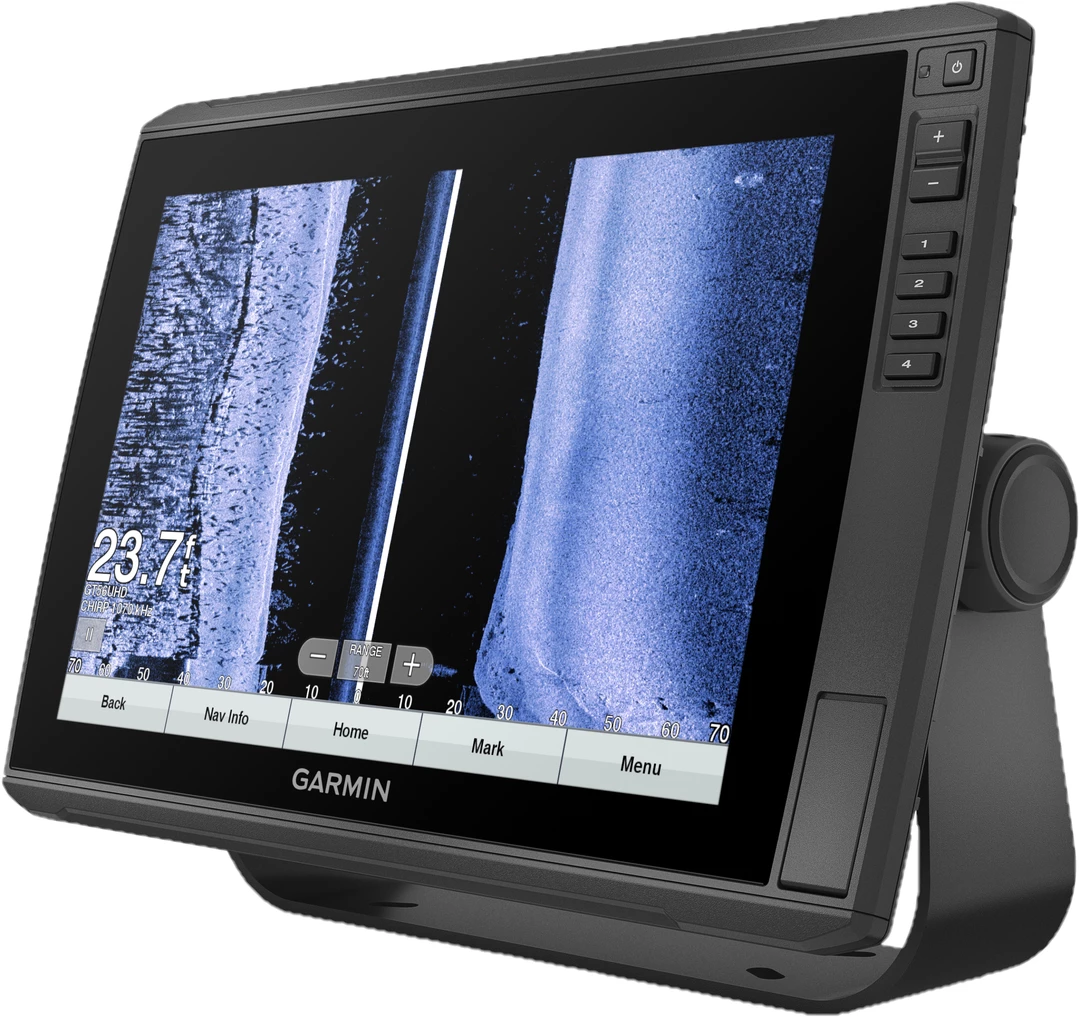

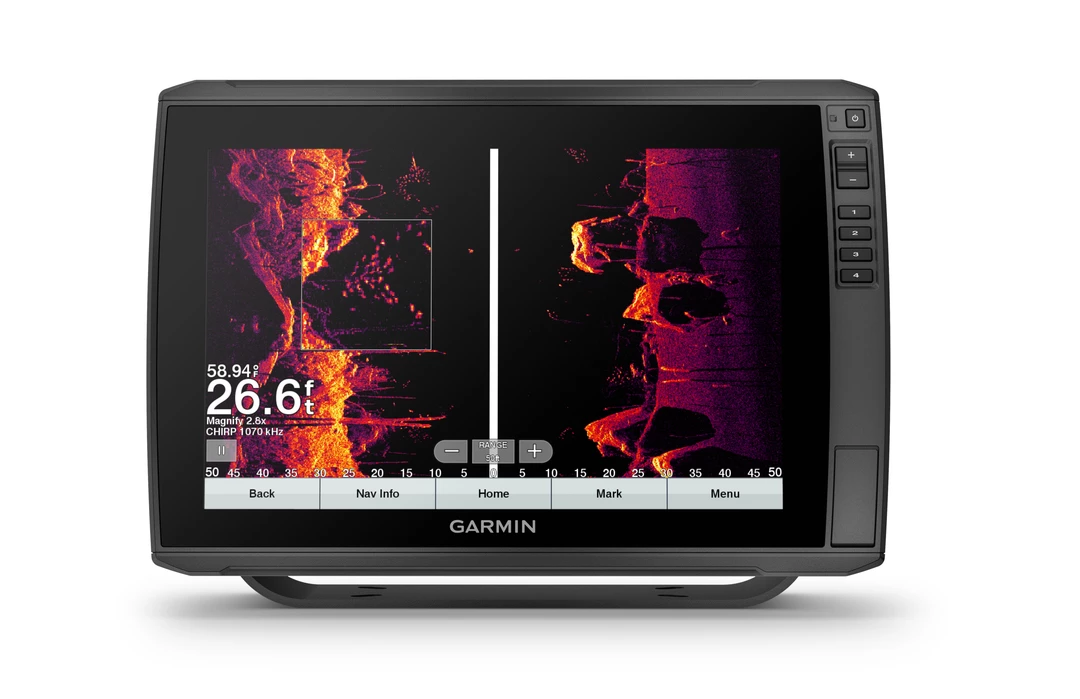

Garmin Echomap Ultra 126sv US Detail w/GT56 xdcr
010-02529-01
Physical & Performance
| Physical dimensions | 13.4″ x 9.0″ x 3.9″ (341 x 229 x 98 mm) |
| Water rating |
IPX7 |
| Mounting options | Bail or flush |
| Antenna | Internal or external over NMEA 2000 |
| Receiver |
10 Hz |
| Display size | 10.3” x  6.4”; 12.1″ diagonal (26.1 cm x 16.3 cm; 30.7 cm diagonal) |
| Display resolution | 1280 x 800 pixels |
| Weight |
5.5 lbs (2.5 kg) |
| Display type | WXGA display |
Maps & Navigation
| Accepts data cards |
2 microSD™ cards |
| Track log | 50,000 points; 50 saved tracks |
| Preloaded maps |
BlueChart® g3 (U.S. and Western Canada coastal maps) and LakeVü g3 (inland maps) |
| Routes | 100 |
Features
| Maximum depth |
2,300 ft @ 77 kHz, freshwater 1,100 ft @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions) |
| Wireless remote compatible | No |
| Dual-frequency (50/200 kHz) sonar capable | Yes |
| Transmit power | 600 W (RMS) / 4,000 W (peak to peak) |
| SiriusXM™ Weather & Radio compatible | No |
| Polarized Support | Yes |
| Water temperature log and graph | Yes |
| Supports FUSION-Link™ compatible radios | Yes |
| Power consumption |
26 W |
| NMEA 0183 output ports |
1 |
| NMEA 2000® compatible | Yes |
| Bottom lock (shows return from the bottom up) | Yes |
| CHIRP sonar technology | Yes (Built-in) |
| NMEA 0183 compatible | Yes |
| Frequencies supported |
|
| Transducer pin numbers | 1 – LVS sonar, 1 – 12 pin scanning sonar |
| Supports AIS (tracks target ships position) | Yes |
| GSD™ Black Box sonar support | No |
| GCV™ Black Box sonar support | Yes |
| Sonar history rewind | Yes |
| SideVĂĽ |
Yes with CHIRP (built-in) |
| ActiveCaptain compatible |
yes |
| GRID™ (Garmin Remote Input Device) compatible | No |
| Garmin Radar compatible | No |
| Supports DSC (displays position data from DSC-capable VHF radio) | Yes |
| Garmin Marine Network™ ports |
2 (large connector) |
| Garmin Sonar compatible | Yes |
| NMEA 0183 input ports |
1 |
| Wireless connectivity |
Yes |
| Wireless mouse compatible | No |
| Sonar recording | Yes |
| Dual-beam (77/200 kHz) sonar capable | Yes |
| Waypoints |
5,000 |
| Garmin SmartMode compatible (customizable monitor presets) | No |
| Garmin Meteor™ Audio System compatible | No |
| ClearVĂĽ |
Yes with CHIRP (built-in) |
| Sailing Features | Yes |
| Tide tables | Yes |
